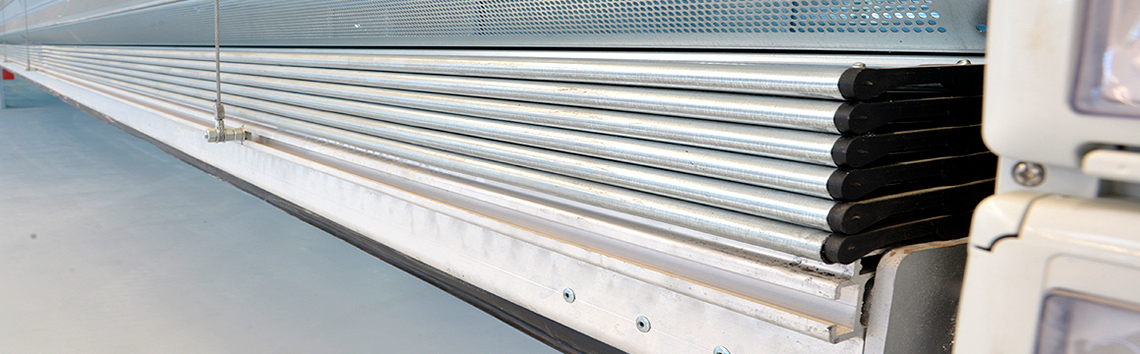

Protection for large size ceiling-mounted telescopic.
ProfilPACK® is a packable protection made of profiles in highstrength and realized with high quality materials. The simple design and construction characteristics guarantee a valid anti-intrusion barrier.
ProfilPACK® is ideal for closure off:
It can be made of full or microperforated steel. Finishing can be galvanized steel or painted galvanized steel, in any color.
Ideal for restructuring
Simple installation and limited overall dimensions also make this product suitable as a replacement of existing barriers in areas that are already operative, without any particular masonry work.
Materials and finishes
- standard : hot galvanized steel
- On request : RAL colours
TECHNICAL DETAILS
ProfilPACK® - Protection for large size ceiling-mounted telescopic
The ProfilPACK® modular barrier is a new closure system for big
dimensions designed to fully comply with current regulations.

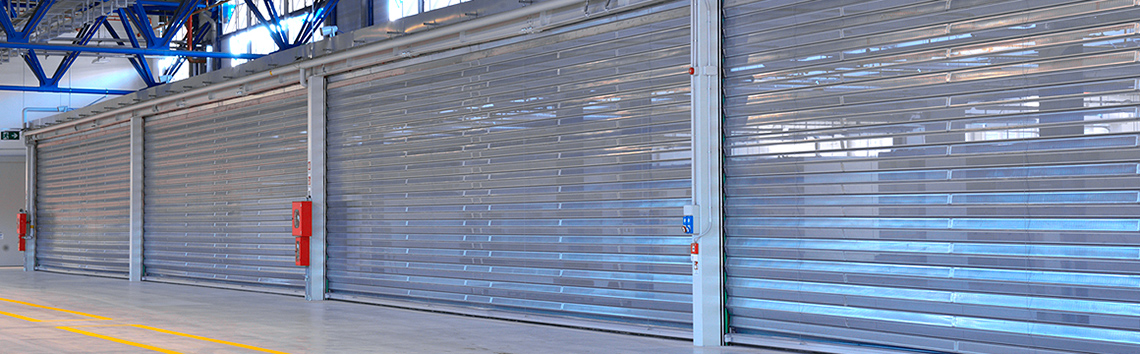

Specifically designed for large shopping areas (checkout line
closures, shopping malls, etc.)
the main characteristics of this system are:
- Modular construction and easy assembly without the need for
lifting means
- No width restrictions
- Overall dimensions of the application reduced to a minimun (120 x 72 mm guides)
- Standard finish in hot galvanized steel (can be painted in any colour required)

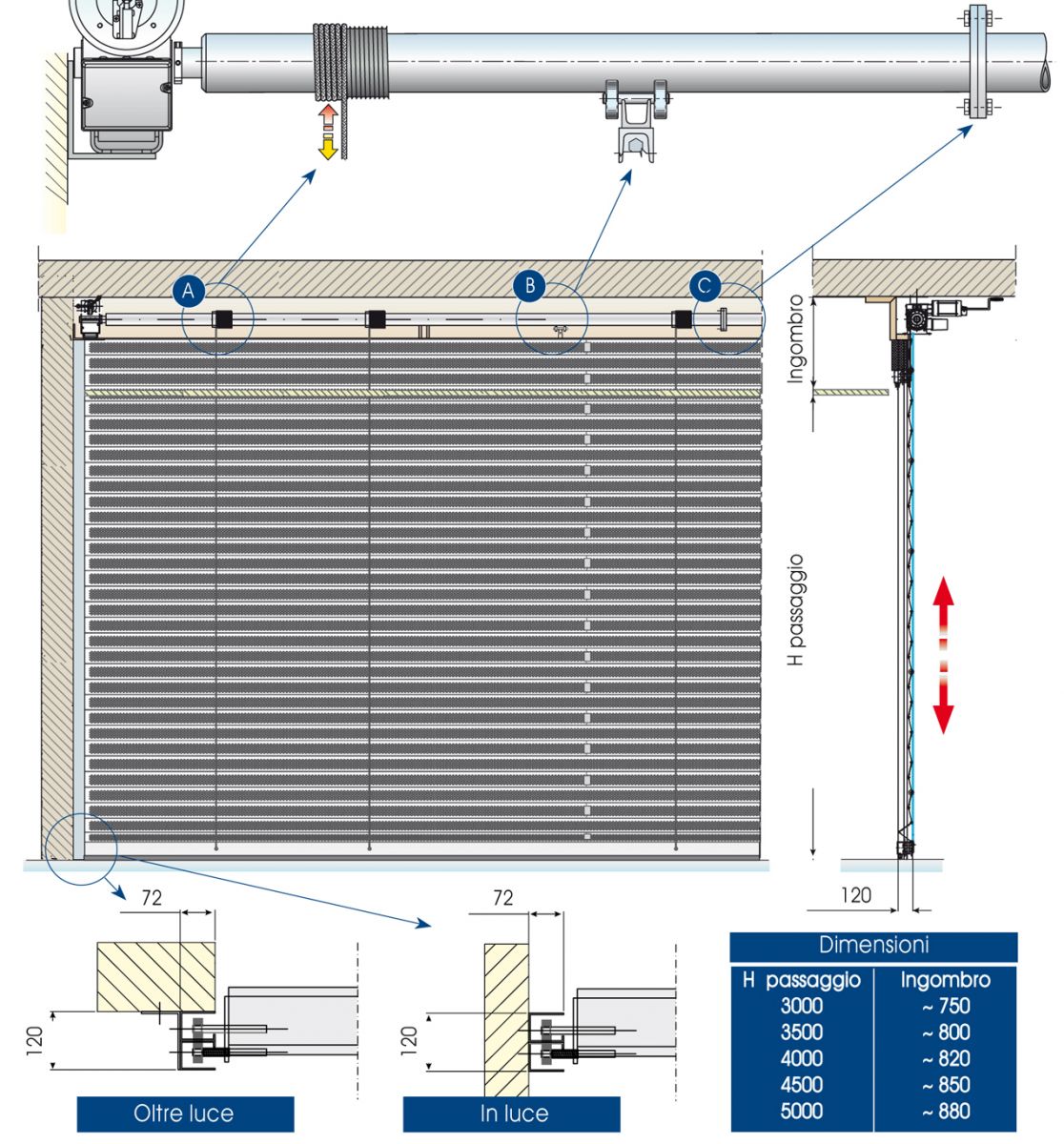

A - UNI EN 13241-1 STANDARD PERFORMANCE. The cables are wound around the shaft by means of a sophisticated self-guided system that prevents cable overlapping.
B - The dimension of the axle and the supports (consisting of interchangeable nylon coated radial bearings) ensure high flexing resistence fully conforming to the standards.
C - Shaft assemblable on-site without welding

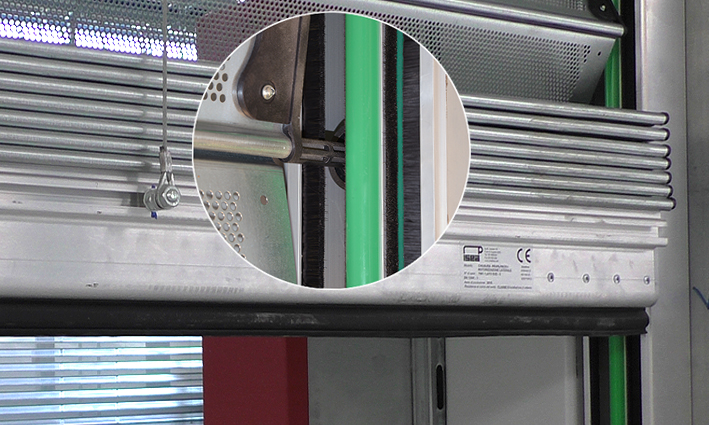

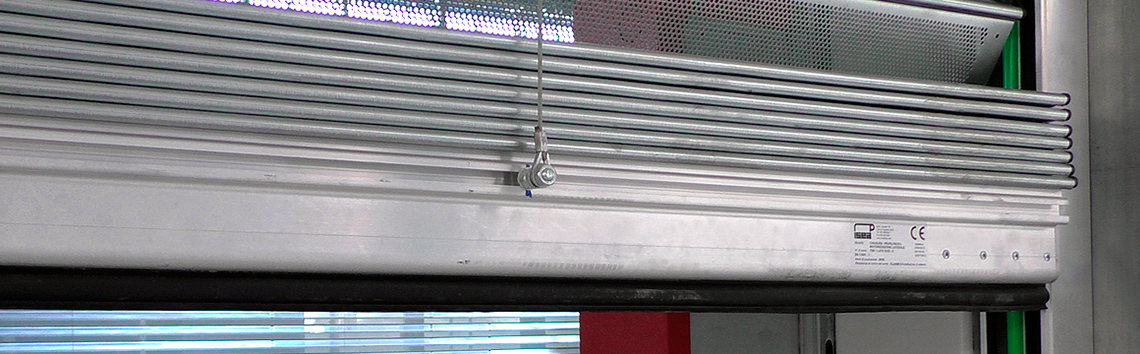

Bottom slat and vertical side guides
Bottom slat realized in extruded aluminium with incorporate a neoprene rubber seal. Profiles are driven by wheels made in reinforced plastic and slide inside a self-lubricated vertical guide equipped with polizene sliding insert, to reduce noise in opening and closure operations.

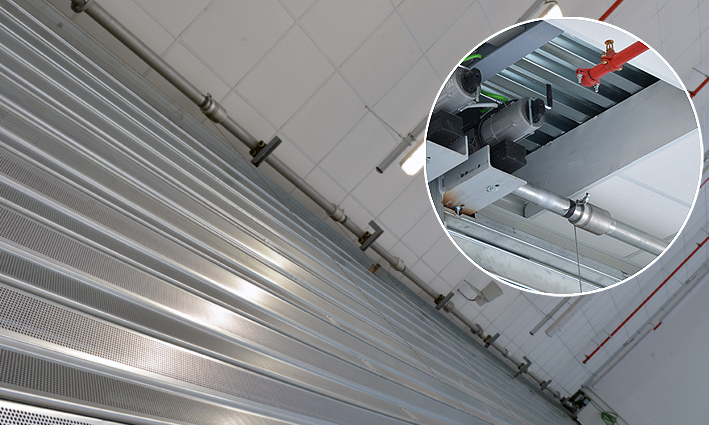

Electric operation
The operation is granted by a sole gear motor. The main shaft is supported by supports equipped by self lubricated bearing in all its length; the opening/closure operations are integrated by winding shaft and steel cables. The pairing shaft/cable/gear motor make the operations easier and dynamic safe.
Controls
The controls are invariably with operator in attendance and having a full view of the door. Set up for optional photocell or infrared beam lifting.

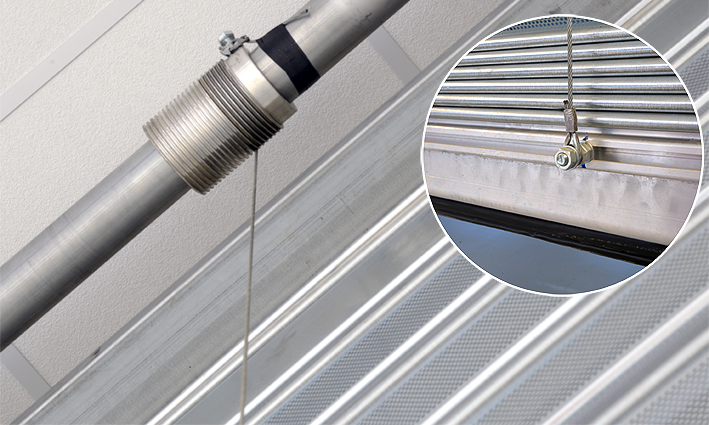

Shaft and winding cable
Detail of shaft and about the winding cable of curtain realized in high performace steel.

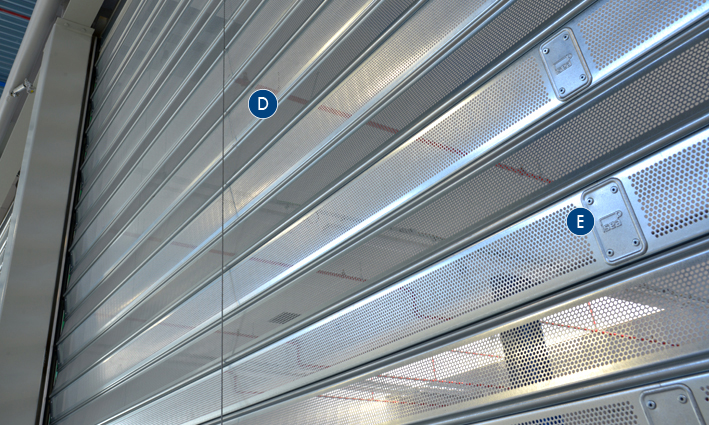

D - Modular construction

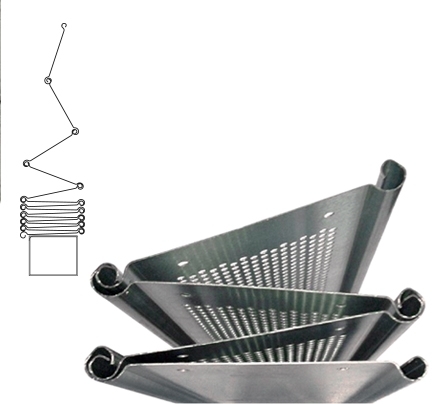

Shutter made from galvanized steel slats hinged one to each other throughout the width of the entire closure.
E - Junction elements​
The shutter is constructed from separate modules which are assembled directly on site by setting the appropriate junction elements. TThe connection system of the different parts is achieved using slats with staggered length so that each junction point is reinforced by the insertion in the continuous articulation of the upper and lower sections.
Standard finish: hot galvanized steel
On request: RAL colours
